Axles — Built for Performance and Engineered for Extremes

Strength That Moves. Reliability That Lasts.

At Bhagwan Shree Ispat, we understand that an axle is more than a mechanical component—it is a critical part of the system that supports loads, enables movement, and contributes to overall operational performance.

Our axle solutions are designed with a focus on strength, dimensional precision, durability, and dependable performance, making them suitable for demanding industrial and heavy-duty applications.

What Is an Axle?

An axle is a central shaft that supports rotating components such as wheels and gears while transferring loads and, in applicable systems, transmitting rotational force.

Because axles operate under significant mechanical loads and varying operating conditions, material quality, engineering accuracy, and manufacturing consistency are essential.

At Bhagwan Shree Ispat, we focus on delivering steel-based axle solutions that combine robust construction with reliable performance.

Key Features

High Strength

Designed to withstand demanding loads and challenging operating conditions.

Precision Engineering

Manufactured with attention to dimensional accuracy and consistent specifications.

Durability

Built for long-term service with a focus on dependable performance and resistance to operational wear.

Quality Materials

We emphasize suitable steel grades and controlled manufacturing practices to deliver reliable axle solutions.

Applications

Our axle solutions can be used across a range of transportation, agricultural, construction, and industrial applications, including:

• Commercial and heavy-duty vehicles
• Trailers and transport equipment
• Agricultural machinery
• Construction equipment
• Industrial machinery
• Material-handling equipment
• Specialized engineering applications

In the context of the Ispat (Steel) industry, an axle refers to two primary domains:

1. Steel Product & Manufacturing (Wheels & Axles)

In steel manufacturing and heavy metallurgy, axles are high-value, specialized forged steel products engineered to withstand extreme mechanical stress, fatigue, and heavy dynamic loading.

• Railway Axles & Wheelsets: Major public and private steelmakers (such as Steel Authority of India Limited – SAIL’s Durgapur Steel Plant, or Rashtriya Ispat Nigam Limited – RINL) produce forged micro-alloyed carbon steel axles and integrated wheelsets for locomotives, passenger coaches, and freight wagons.

• Automotive & Commercial Vehicle Shafts: Forged alloy steel blooms and round bars are converted into drive axles, rear axle housings, and stub axles for heavy commercial vehicles (HCVs), construction, and mining equipment.

• Industrial & Crane Axles: Heavy-duty axles manufactured from forged carbon or alloy steel for steel plant overhead cranes, ladle cars, and transfer cars.

Key Steel Grades Used:

• Carbon steels (e.g., Class A, B, C, D railway axle steel specifications).

• Alloy steels (e.g., 42CrMo4, 20MnCr5, AISI 4140, AISI 4340 for hardened automotive axle components).

2. Supply Chain & Heavy Logistics Equipment

Within steel plant operations (Ispat facilities), “axle” also refers to the heavy transport machinery and structural load limits governing logistics:

• Heavy Haulage & Torpedo Cars: Custom multi-axle rail wagons designed to transport hot liquid iron (pig iron/hot metal) from blast furnaces to steel melting shops.

• Axle Load Capacity: Crucial transportation compliance metric for hauling heavy steel coils, TMT rebars, billets, and plates via road or rail transport.

If you are asking about a specific IT software tool, internal enterprise application, or vendor named “AXLE” within a particular steel company (e.g., SAIL, JSW Ispat , or JSPL), please clarify the context.

In the steel (Ispat) sector, “Axle” primarily represents two high-tonnage applications: railway rolling stock manufacturing and heavy equipment transmission components inside rolling mills.

1. Railway Axle Manufacturing (Finished Steel Product)

Integrated steel plants forge precision axles for locomotives, freight wagons, and passenger coaches using high-strength carbon and alloy steel billets.

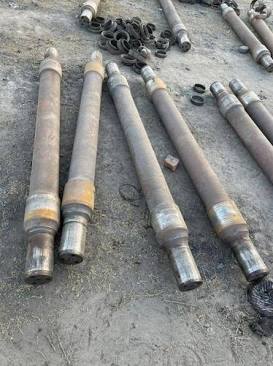

Forged railway axle shafts prior to machining.

• Manufacturing Process: Cast steel blooms undergo rotary forging, heat treatment (normalizing/tempering), and rough machining to reach exact dimensional tolerances.

• Key Properties: High dynamic load capacity, fatigue resistance, and high ultrasonic testing compliance to eliminate internal inclusions.

2. Rolling Mill Drives & Heavy Plant Axles (Plant Equipment)

Within Ispat udyogs (steel processing plants), heavy drive shafts and roll axles transmit enormous torque to drive high-temperature rolling stands.

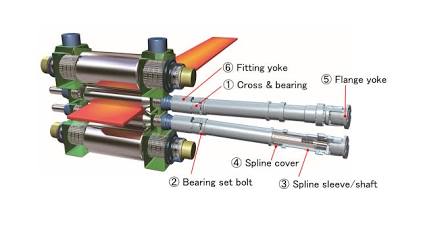

Drive axle arrangement in a hot rolling mill stand. Source: koyo.jtekt.co.jp

• Operational Role: These universal joint drive shafts and pinion axles power the heavy rolls that reduce thick steel slabs, billets, and blooms down to sheet, rod, or structural shapes.

• Durability Standard: Engineered to handle thermal shock from hot metal contact (1,000°C+) and continuous high-torque reversing forces.

Key Business Applications Summary

Sector	Product / Function	Primary Steel Grades
Railways	Wheelset axles, loco drive shafts	IRS R-16, EN24, 42CrMo4
Ispat Machinery	Mill stand rolls, drive spindles, crane axles	Forged Alloy Steel (30CrNiMo8)
Commercial Automotive	Supply of special bar quality (SBQ) steel to CV axle makers	20MnCr5, SAE 1541, SAE 4140

Below are the detailed compositions, mechanical properties, and microstructural characteristics for the primary steel grades used in forged axles across railway and heavy engineering applications.

1. Railway Axle Steel (IRS R-16 Standard)

Used for railway passenger coaches, locomotive shafts, and freight wagon wheelsets.

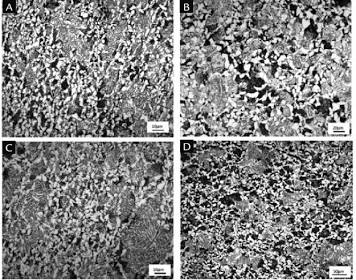

A. Microstructure & Grain Alignment

Forged railway axles typically exhibit a fine ferritic-pearlitic microstructure achieved via controlled normalizing. The forging process refines the grain structure, removing internal voids and orienting flow lines along the axis for maximum fatigue strength.

B. Chemical Composition & Mechanical Properties

Parameter	IRS R-16 (Carbon Steel)	42CrMo4 / AISI 4140 (Alloy Steel)	EN24 / AISI 4340 (Ni-Cr-Mo Steel)
Primary Application	Railway Axles & Wheelsets	Rolling Mill Drives & Truck Axles	Heavy Industrial & Extreme Torque Axles
Carbon (C)	0.37% – 0.46%	0.38% – 0.45%	0.36% – 0.44%
Manganese (Mn)	0.60% – 0.90%	0.60% – 0.90%	0.45% – 0.70%
Chromium (Cr)	≤ 0.30%	0.90% – 1.20%	1.00% – 1.40%
Molybdenum (Mo)	—	0.15% – 0.30%	0.20% – 0.35%
Nickel (Ni)	≤ 0.30%	—	1.30% – 1.70%
Silicon (Si)	0.15% – 0.46%	≤ 0.40%	0.10% – 0.35%
Phosphorus (P)	≤ 0.035%	≤ 0.025%	≤ 0.035%
Sulfur (S)	≤ 0.035%	≤ 0.035%	≤ 0.035%

2. Mechanical Performance Comparison

Mechanical Property	IRS R-16 (Normalized)	42CrMo4 (Quenched & Tempered)	EN24 (Condition T)
Tensile Strength (UTS)	550 – 650 MPa	900 – 1200 MPa	850 – 1000 MPa
Yield Strength (YS)	≥ 320 – 380 MPa	≥ 650 – 750 MPa	≥ 680 MPa
Elongation ($A_5$)	≥ 22% – 24%	≥ 11% – 12%	≥ 13%
Impact Energy (Charpy V/U)	≥ 25 J (Charpy U)	≥ 35 J (Charpy V)	≥ 50 J (Izod / Charpy V)
Hardness	170 – 210 HBW	280 – 320 HBW	248 – 302 HBW

Key Metallurgical Characteristics

1. IRS R-16 Carbon Steel: Prioritizes high fracture toughness, ductile energy absorption, and long cyclic fatigue life over raw hardness.

2. 42CrMo4 Alloy Steel: Chromium and Molybdenum form wear-resistant carbides, delivering high torsional strength for commercial vehicle drive shafts and mill equipment.

3. EN24 (Ni-Cr-Mo) Steel: Nickel prevents embrittlement while Chromium and Molybdenum maintain high yield strength across thick forge sections, ideal for mill stands and heavy plant machinery.
